Viking Data Export

1 Choose a volume

2 Choose an export

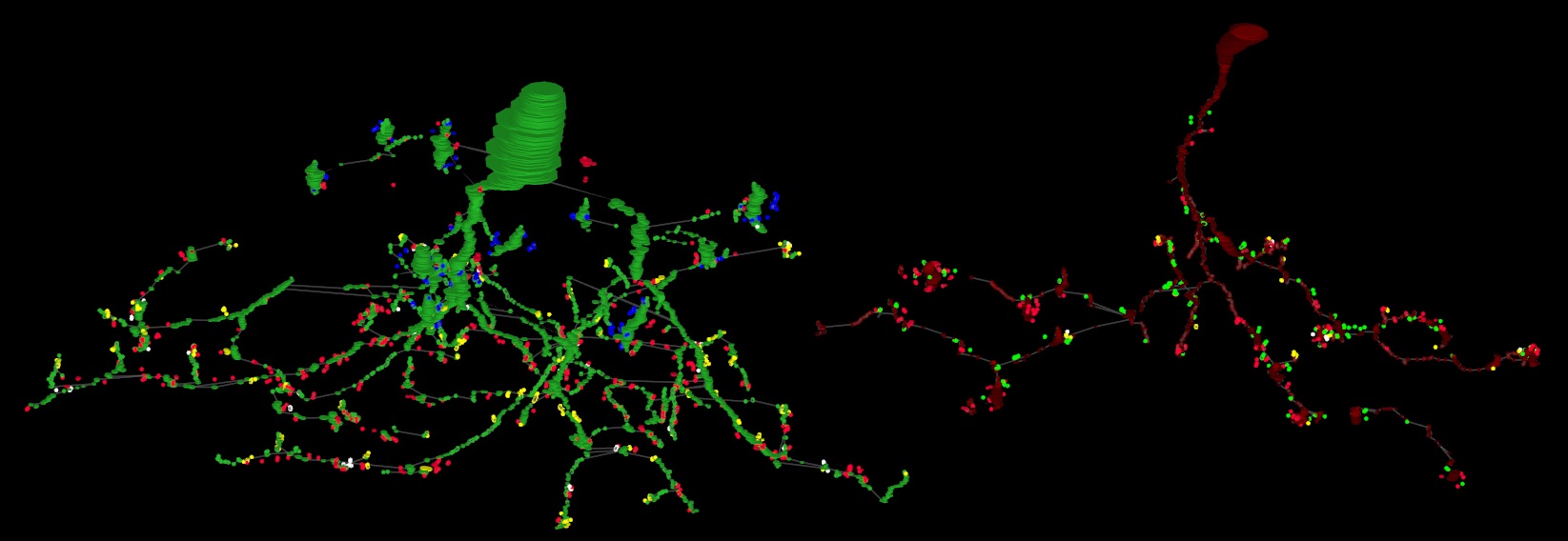

Morphology

The shape of individual structures: every annotation, its position, and its links. Use this to reconstruct cells in Tulip or your own tooling.

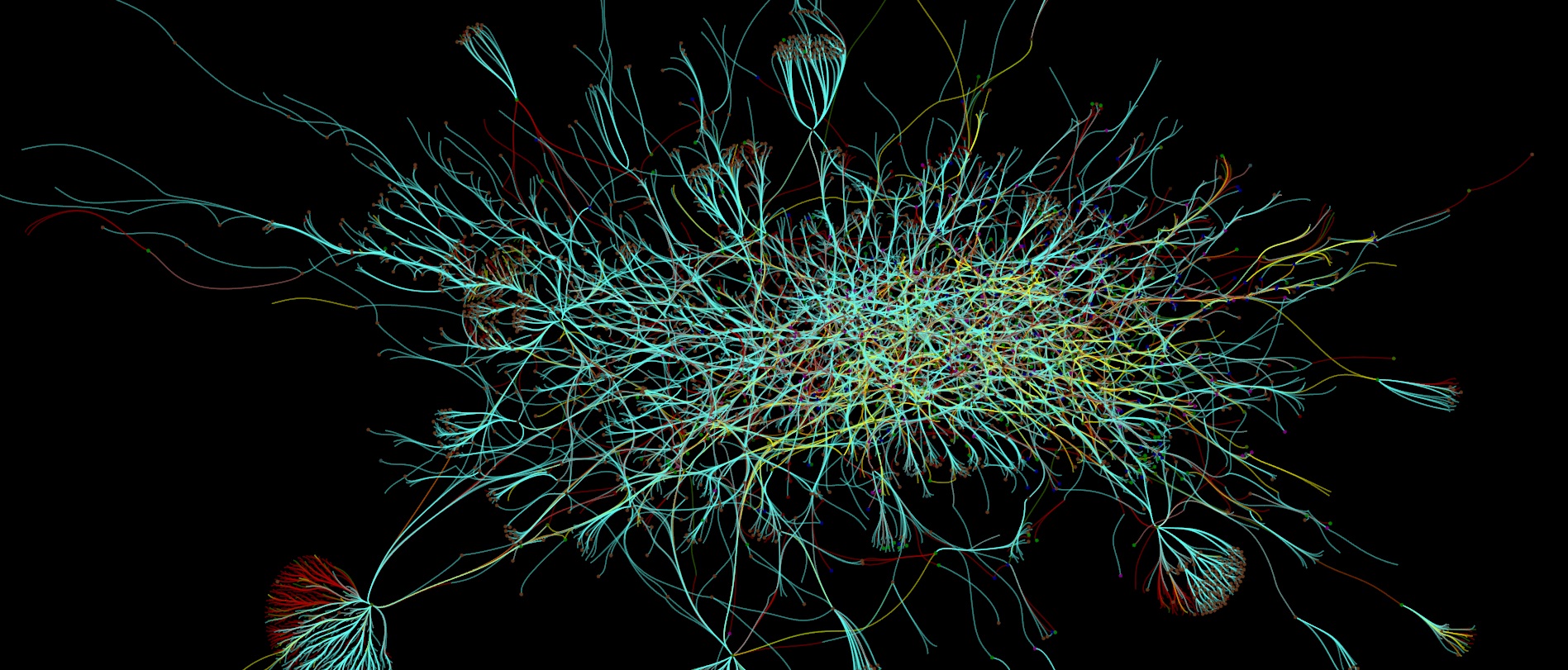

Network

Connectivity between structures, traced outward a chosen number of hops. The usual starting point for circuit analysis.

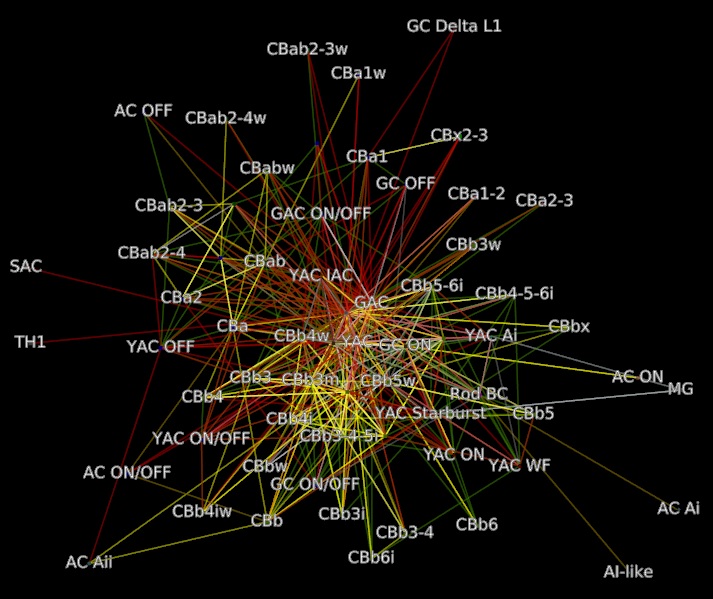

Motif

Connection patterns summarized by structure type across the whole volume. Takes no inputs.

3 Choose a format

4 Set the inputs

Structures

Leave this empty to export the entire volume. Paste a list, or drop a .txt or .csv file onto the box below. You can mix three kinds of entry:

IDs — 180
Ranges — 1-10 includes every ID from 1 to 10
Labels — CBb3n matches any structure whose label contains that text, ignoring case

Separate entries with a comma, a semicolon, or a new line. Spaces separate numbers only, so a label that contains one, such as GC ON, stays intact.

Lists of any length are fine. Long ones are sent in the request body rather than the URL, so they arrive as a single request and download as a single file.

Drop your ID file

no IDs, whole volume

Hops

How many synaptic steps outward from the listed structures to follow.

Reduce to a stick figure

Collapses each structure to its skeleton, producing a much smaller file.

5 Download

Request
